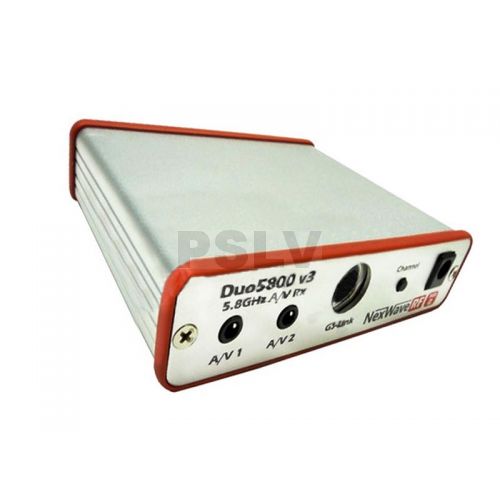

3401003  ImmersionRC DUO5800 v3 5.8GHz Receivers with Diversity

Affordable
The ImmersionRC Duo5800 finally makes 5.8GHz A/V links affordable. Compatible with our 25mW, 100mW, and 600mW 5.8GHz transmitters, the Duo5800 provides a high quality video link, which co-exists with adjacent 2.4GHz R/C transmitters.

Quality
The higher video bandwidth, when compared with 2.4GHz systems, provides a high quality video image.

Connectivity
The standard 3.5mm 4-pole jacks combine video and stereo audio in one simple connection. These are compatible with all FatShark/ImmersionRC equipment, and greatly reduce ground-station ‘clutter’. (Combine with the ImmersionRC Power Box to increase the number of A/V outputs to 5!)

Cables terminated in the 4-pole jacks are available in various lengths to interconnect equipment.

Two buffered A/V outputs are supplied. These can be used for video and audio outputs or to plug into an EzAntenna Tracker.

Safety
An audible low-battery alarm provides plenty of warning before a ground-station battery is drained. Programmable for auto-detection of LiPo packs, or a user-defined voltage level.

Specification

• A/V receiver with diversity antenna inputs
• Sensitive receivers (-90dBm)
• SMA antenna connectors, compatible with standard 5.8GHz antennas (omni or directional)
• Frequencies: 5740, 5760, 5780, 5800, 5820, 5840, 5860MHz
• Not affected by 2.4GHz R/C radios!
• Audible Low-battery alarm
• Weight: 200 grams
• Size: 80 x 100 x 23mm
• Input voltage range: 6 – 16V at 500 mA (3s Lipo Ideal)
