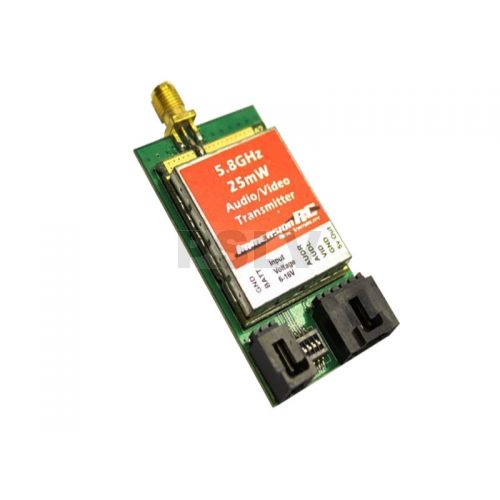

4701002  ImmersionRC 5.8GHz 25mW Transmitter

The long awaited solution to your 2.4GHz radio gear incompatibility issues - 5.8GHz video gear from ImmersionRC!

The product will accept an input voltage of 6-16V and includes a sophisticated switching regulator to power itself and your 5V camera cleanly and efficiently.

Nb. Extra lead option refers to a KX131/ SN777 pigtail which we take and join (with solder and heat shrink) to the supplied ImmersionRC bare wires lead. You just plug and play!

Specifications:

• Frequencies (Airwave): 5740MHz, 5760MHz, 5780MHz, 5800MHz, 5820MHz, 5840MHz, 5860MHz
• Super-quiet, high efficiency switching regulator
• Small, light weight, all-in-one A/V transmitter solution
• 5V camera power, ideal for a KX131/ SN555, is generated onboard.
• No interference with sensitive RC equipment by design
• High bandwidth stereo-audio channels, ideal for sending down high-speed telemetry data.
• Two sets of A/V connectors, for easy patch-in of an audio source
• FM Audio/ Video Modulation
• 50 ohm antenna impedance
• 1Vpp Video Input level
• 3V pp Audio Input Level
• Input Voltage Range: 6 – 16V
• Size: 80 x 35 x 10mm
• Weight: 29g (including antenna)
