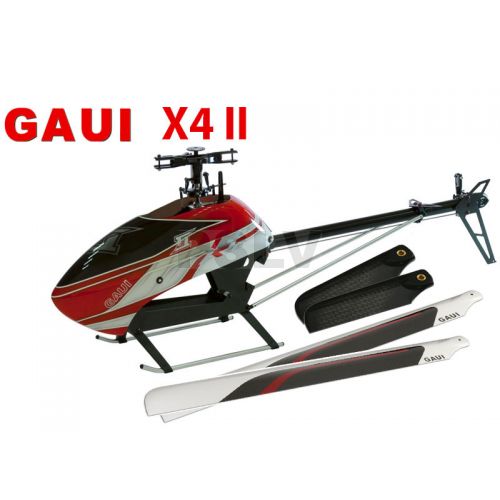

215002  Gaui X4 II Kit

High precision CNC aluminium rotor head assembly for superior 3D performance.
Precisely tuned servo block for various brand of servos New ultra-rigid CF frame assembly.
100% carbon fiber frame.
New CCPM control system for precision accuracy to enhance hovering and 3D flight control.
Factory configured CNC torque tube, tail boom assembly.
Recessed mire CNC spindle seat effectively reduce installation error.
One piece CNC open tail box for maximum gear protection.
New lightweight push rod control Extreme 3D performance with explosive power.
New high-rigid lightweight brace.
Streamelined FRP canopy.
Removable battery tray.

Specifications

Length (with canopy): 900mm
Height: 320mm
Width: 165mm
Main Blade Length: 425 ~ 460mm
Tail Blade Length: 70 ~ 77mm
Main Rotor Diameter: 970 ~1040mm
Tail Rotor Diameter: 210~222mm
Weight: 1780g ±5% (with engine and electronics)
Gear Ratio: 6.67: 1: 4.07 (For 18T Pinion)
Servos: Mini servo

Package content

CF main frame / CF main blades(215600)
CF Tail Rotor Blade Set(215590)
