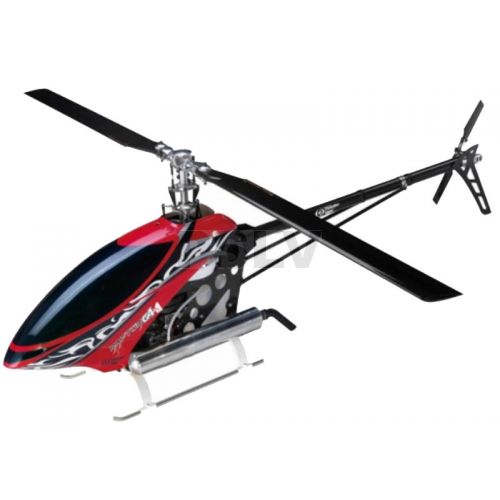

T4895-K10  Raptor 90 G4.1 Nitro FBL Kit

This second generation Raptor G4.1 builds on success and adds a few tweaks to ensure the G4.1 stays top of the pile. The side frames have been revised allowing the user to install either the Redline RL100H engine or an OS105 Engine and optimized for a 115T main gear.

The rear fin and tail case have been updated as have the Control arms and the bearing block. The G4.1 has pushed the boundaries of 90 sized helicopters and will continue to.

The superbly engineered, precision made all-metal rotor and control system yield silky handling links you to the machine as one entity. Ultra high performance, smooth, fast and agile, the G4.1 is capable of winning F3C contests or 3D competition. The Raptor G4.1 will make your flying dream come true.

Features
●Flybarless System
●Swashplate: ECCPM(135~140°)
●Fuselage Height:462mm(18.2”)
●Fuselage Width: 221mm(8.7”)
●Fuselage Length:1366mm(53.8”)
●Rotor Blade:690-720mm(27.2-28.3”)
●Rotor Dia.: 1563-1603mm(61.5-63.1”)
●Tail Blade: 105mm (4.1”)
●Tail Rotor Dia.:280mm(11”)
●Dry Weight: 4400g(9.7 lbs)
●Main Gear/Pinion: 111T/14T( 15T OP)
●Suggested Rotor Speed: 2000~2100 RPM
●Tail Driven: Torque Tube
● Gear Ratio (E:M:T): 7.92 : 1: 4.67

Revised Changes
●Revised Carbon Side Frame accepts
●15T pinion optimized with OS engine
●Thicker Grip Plate & Lengthened Post for Precisely Cyclic Pitch Control
●Reinforced Bearing Block
●Easy Maintain Control Arm Set
