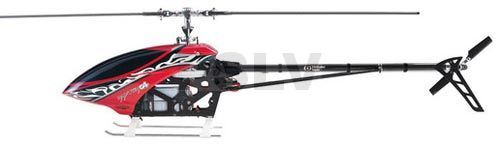

With an all new innovation design that leaps far ahead of all competitions- the bold new 90-size Raptor G4 series from Thunder Tiger, a name you have known and replied upon for quality and high performance helicopters for decades, is going to unleash your imagation. The brand new G4 is designed from a clean sheet for maximum innovative configuration, can be nitro engine or electric powered, flybared or flybarless rotor system, which can be full fill expectations from the most demanding and ambitious 3D and F3C pilots.

The superbly engineered, precision made all-metal rotor and control system yield silky handling links you to the machine as one entity. Ultra high performance, smooth, fast and agile, the G4 is capable of winning F3C contests or 3D competition. The Raptor G4 will make your flying dream come true.

Control System: 135/140° Collective Cyclic Pitch Mixing (CCPM), +/-15° collective pitch range, adjustable Bell-Hiller mixing ratio can be set for F3C or 3D Main Frame: 0.08" (2mm) thick carbon Rotor
Head: All metal, flybarless with 3-axis stabilization system
Drive System: Torque tube for 100% power transfer and crisp tail rotor response
Motor Mount: Adjustable, top mounted motor placement for better center of gravity, adjustable pinion bearing block
Main Shaft: 15mm diameter hardened steel.
Hollow design Tail Boom: Carbon with carbon support and one-piece metal bracket, bottom mounted ESC on tail bracket for efficient heat dissipation and easy maintenance.
Tail Rotor System: All metal, heavy duty with rotor rod guide and heavy duty helical bevel tail gears
Tail Case: One-piece machined metal Tail Blades: Carbon, 4.1" (105mm) in length
Canopy: FRP, preprinted red in color
Main Gear: Lightweight and vented heavy duty 17mm helical
Landing Gear: Nylon with aluminum skids

Specification
Fuselage Length: 53.3" (1354mm)
Main Rotor Diameter: 63" (1604mm)
Tail Rotor Diameter: 11" (280mm)
Weight (Fully Equipped): 8.27lb (3750g)
Height: 16.9" (430mm)
Main Rotor Length: 27.2 - 28.3" (690 - 720mm)
Tail Rotor Length: 4.1" (105mm)

Main Gear/Pinion: 111/11T standard, (12 or 13 optional)
Gear Ratio: 1:10.09:4.67 standard

Requirements To Complete
Motor: Brushless, 470 - 520kV, 450 - 470kV
Pinion Gear: 12T (w/470 - 520kV motor) 13T (w/450 -470kV motor)
Radio: At least 6-channel with receiver battery
Gyro: Flybarless 3 axis
Battery: 12S (6S x 2) 5000 - 6000mAh at least 25C
Battery Charger: LiPo compatible
ESC 80 - 120A
Main Blades: 690mm or 710mm carbon fiber
Tools and field equipment
