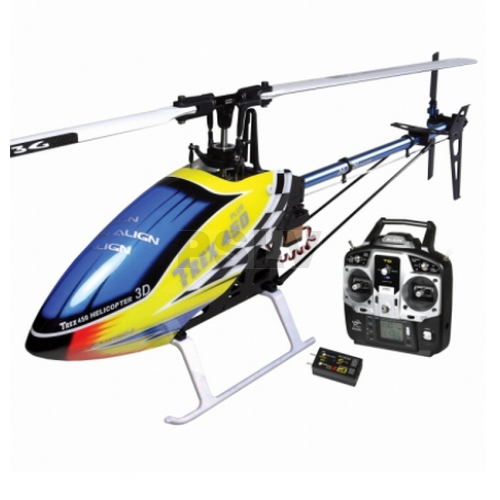

RH45E02XT T-REX 450 Plus DFC Super Combo 3GX
Preço535,36€
|
Product: | |||
|
|||
Focus Shot1(Equipped with the low CG DFC rotor head, exhibits exhilarating 3D performance and unimaginable flight speed.) | Focus Shot2(New 450DFC CCPM Swashplate and main shaft bearing block) | Focus Shot3(Brand new battery mount with integrated ESC mount) | |
|
|
|
|
Focus Shot4(Newly designed 4 piece upper / lower plate frame system) | Focus Shot5(Newly designed servo mount & high precision helical main gear) | Focus Shot6(Newly designed rudder servo mount & dedicated rudder gyro mounting platform) | |
|
|
|
|
Focus Shot7(New style frame base plate with access window to gyro adjustment) | Focus Shot8(Hoop style horizontal fin mount with longer tail boom supports) | Focus Shot9(High precision tail pitch control assembly) | |
|
|
|
|
Focus Shot10(ALIGN T6-2.4GHz transmitter) | Focus Shot11(Balance Charger RCC-3SD) | Focus Shot12(450MX Brushless Motor(3400KV)) | |
|
|
|
|
Focus Shot13(3GX MR Flybarless System) | Focus Shot14(325D 3G Carbon Fiber Blades) | Focus Shot15(DS415M Digital Servo) | |
|
|
|
|
Focus Shot16(DS425M Digital Servo) | Focus Shot17(RCE-BL35P 35A Brushless ESC / 3S1P 11.1V 2200mAh/30C) | Focus Shot18(1.5V AA Zinc-Carbon Battery) | |
|
|
|
|
Package 1: | |||
|
|||
Package 2: | |||
|
|||
Instruction: | Specification(3GX MR) : | ||
●T-REX 450 has been the ideal choice for entry level R/C helicopters. To cater to the beginner enthusiasts, Align first introduced RTF (Ready to Fly) T-REX 450 PLUS.? Now, Align presents a new flybarless version:?T-REX 450 PLUS DFC. ?Complete with Align T6 2.4G transmitter and newly released 3GX MR flybarless system, this fully assembled helicopter can be flown immediately just by plugging in a charged battery, allowing the pilot to bypass assembly and adjustment process. ●The helicopter utilizes DFC rotor head assembly, paired with 3GX MR flybarless system optimized for T-REX 450 PLUS flight characteristics. ?Without any adjustment or tuning, this combo will provide optimal stability suitable for pilots of all levels. ●For those enthusiasts who wish to fine tune 3GX MR even further, it can be done through a few simple steps. In addition, 3GX MR has a FHSS 2.4GHz receiver built in, providing an all in one package. ●Align T6 R/C system utilizes Futaba 2.4G S-FHSS frequency hopping 6 channel transmitter, with complete helicopter functions such as throttle/pitch curve, stunt mode switch, dual rate and exponential adjustment, etc. ●With the addition of the brand new 3GX MR, the T-REX 450 PLUS DFC pushes past the performance limitation of flybar helicopter, improving both stability and 3D performance, while maintaining a down to earth price level |
●Operating Temperature:-10~60 degree ●Suitable Voltage Range:DC 3.5~8.4V ●Operating current consumption:<100mA @4.8V ●Operating humidity:0%~95% ●RoHS certified ●X and Y axis Operating Angle Range:-300~+300 degree ●Z axis Operating Angle Range:-600~+600 degree ●Size:37.4x20.5x12.6 mm Size ●Weight: 9g Weight |
||
Instructions:(T-REX 450Plus DFC) | Specification:(T-REX 450Plus DFC) | ||
Features:
|
●Length: 634mm ●Height: 202mm ●Main Rotor Diameter: 715mm ●Tail Rotor Diameter: 158mm ●Motor Drive Gear: 11T ●Main Drive Gear: 112T ●Autorotation Tail Drive Gear: 106T ●Tail Drive Gear: 25T ●Drive Gear Ratio: 1:10:4.24 ●Flying Weight: Approx. 584g ●Color carton:27.3x10x6.6cm ●Outer carton:56x31x28cm ,24sets/ctn |
||
Accessories: | |||
●T-REX 450 Plus DFC Kit Set X1 set ●3GX MR Flybarless System X1 set ●ALIGN T6 6Channel Transmitter X1 ●325D 3G Carbon blades X1set ●RCE-BL35P 35A Brushless ESC X1 ●450MX Brushless motor(3400KV) X1 ●DS415M (Metal Gear)Digital servoX3 ●DS425MDigital servoX1 ●3S1P 11.1V 2200 mAh/30C Li-polymer Battery X1 ●Lithlum Battery Balance Charger RCC-3SD X1 set ●1.5V AA Zinc-Carbon Battery X4 Radio transmitter and electronic equipment required for assembly: 1.Dial Pitch Gauge or Digital Pitch Gauge 2.Swashplate Leveler |
