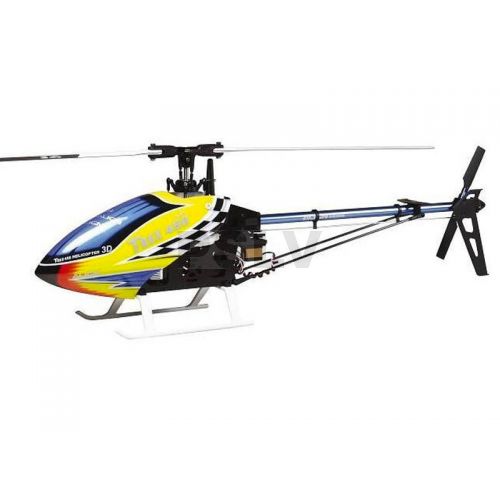

RH45E09X T-REX 450 PLUS DFC BTF

RH45E09X T-REX 450 PLUS DFC BTF
As imagens são meramente ilustrativas e sem valor contratual
Clique para ampliar
Preço421,55€
Disponibilidade: Existente
Referencia: RH45E09X
Fabricante: ALIGN
Qtd:  Adicionar ao carrinho
Product:

Focus Shot1(Equipped with the low CG DFC rotor head, exhibits exhilarating 3D performance and unimaginable flight speed.) Focus Shot2(New 450DFC CCPM Swashplate and main shaft bearing block) Focus Shot3(Brand new battery mount with integrated ESC mount)
Focus Shot4(Newly designed 4 piece upper / lower plate frame system) Focus Shot5(Newly designed servo mount & high precision helical main gear) Focus Shot6(Newly designed rudder servo mount & dedicated rudder gyro mounting platform)
Focus Shot7(New style frame base plate with access window to gyro adjustment) Focus Shot8(Hoop style horizontal fin mount with longer tail boom supports) Focus Shot9(High precision tail pitch control assembly)
Focus Shot10(450MX Brushless Motor(3400KV)) Focus Shot11(3GX MR Flybarless System) Focus Shot12(325D 3G Carbon Fiber Blades)
Focus Shot13(DS415M Digital Servo) Focus Shot14(DS425M Digital Servo) Focus Shot15(RCE-BL35P 35A Brushless ESC)
Package 1:
Instruction: Specification(3GX MR) :
●T-REX 450 has been the ideal choice for entry level R/C helicopters and T-REX 450 PLUS is designed for beginners. The fully assembled helicopter can be flown immediately just by plugging in a charged battery, allowing the pilot to bypass assembly and adjustment process. This T-REX 450 PLUS DFC is a helicopter that utilizing flybarless system.
●The helicopter utilizes DFC rotor head assembly, paired with 3GX MR flybarless system optimized for T-REX 450 PLUS flight characteristics. Without any adjustment or tuning, this combo will provide optimal stability suitable for pilots of all levels.
●For those enthusiasts who wish to fine tune 3GX MR even further, it can be done through a few simple steps. In addition, 3GX MR has a FHSS 2.4GHz receiver built in, providing an all in one package.
●With the addition of the brand new 3GX MR, the T-REX 450 PLUS DFC pushes past the performance limitation of flybar helicopter, improving both stability and 3D performance, while maintaining a down to earth price level
●Operating Temperature:-10~60 degree
●Suitable Voltage Range:DC 3.5~8.4V
●Operating current consumption:<100mA @4.8V
●Operating humidity:0%~95%
●RoHS certified
●X and Y axis Operating Angle Range:-300~+300 degree
●Z axis Operating Angle Range:-600~+600 degree
●Size:37.4x20.5x12.6 mm Size
●Weight:9g Weight
Instructions:(T-REX 450 Plus DFC BTF) Specification:(T-REX 450 Plus DFC BTF)

Features:
●T-REX 450 PLUS DFC BTF(Bind To Fly)complete package was assembled and tuned at the factory. Must use S-FHSS system transmitter to bind and fly. Support Futaba S-FHSS system.
●Equipped with the low CG DFC rotor head, effectively reduce wind resistance during flight, providing the most direct and precise control feel back to the pilot, and exhibits exhilarating 3D performance and unimaginable flight speed.
●Equipped with newly released 3GX MR flybarless system, with FHSS 2.4GHz receiver for built in receiver function, for simpler and more direct setup, with setting optimized for T-Rex 450 Plus DFC, resulting in more stable and more preferable control feel than ever before.
●Four piece frame plate design with imbedded servo mounting platform for fast servo install/removal without mounting nuts.
●Narrow lower frame plate and base plate design to strengthen rigidity and improve flight agility.
●Specially designed in-between frame rudder servo mount for centralized CG location to benefit 3D flying, while minimizing crash damages to rudder servo
●Equipped with MX series high efficiency brushless motor, with dramatically improved cooling efficiency for excellent power output.
●Equipped with new style REC-BL35P brushless controller featuring step-less adjustable BEC voltage between 5V to 6V .
●Dedicated rudder gyro mounting platform to isolate vibration from tail transmission, improving gyro performance.
●Newly designed battery mounting platform with integrated ESC mount for streamlined mounting of electronics.
●High precision tail pitch control assembly with aesthetically pleasing and functional design. Weighted tail blade grips effectively increases smoothness of rudder pitch action.
●New style aerodynamic canopy airbrushed with colorful graphics.



Users must have a certain concept of security to operate the R/C helicopters.
Be sure to read and comply with related safety notes of instruction manual before flying.



●Length: 634mm
●Height: 205mm
●Main Rotor Diameter: 715mm
●Tail Rotor Diameter: 158mm
●Motor Drive Gear: 11T
●Main Drive Gear: 112T
●Autorotation Tail Drive Gear: 106T
●Tail Drive Gear: 25T
●Drive Gear Ratio: 1:10:4.24
●Flying Weight: Approx. 584g
●Color carton:27.3x10x6.6cm
●Outer carton:56x31x28cm ,24sets/ctn
Accessories:
●T-REX 450 Plus DFC Kit Set X1 set
●3GX MR Flybarless System X1 set
●325D 3G Carbon blades X1set
●RCE-BL35P 35A Brushless ESC X1
●450MX Brushless motor(3400KV) X1
●DS415M (Metal Gear)Digital servoX3
●DS425MDigital servoX1



Radio transmitter and electronic equipment required for assembly:
1.Dial Pitch Gauge or Digital Pitch Gauge
2.Swashplate Leveler
3.3S1P 11.1V 2200 mAh/30C Li-polymer Battery x 1
4.ALIGN T6 of Futaba S-FHSS 2.4G Transmitter x 1
