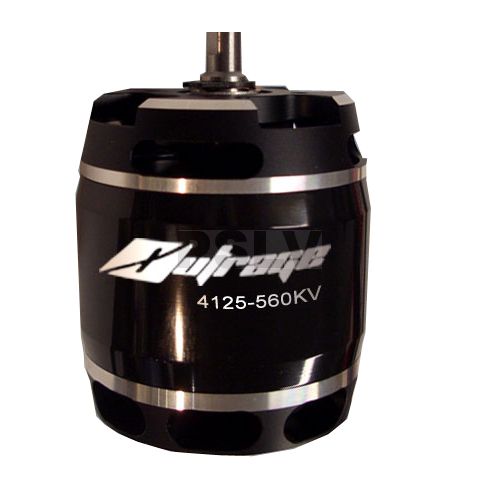

ERG-4125-560 - Outrage 4125-560kV Brushless motor
 As imagens são meramente ilustrativas e sem valor contratual Clique para ampliar |
Preço191,56€
|
ERG-4125-560 - Outrage 4125-560kV Brushless motor

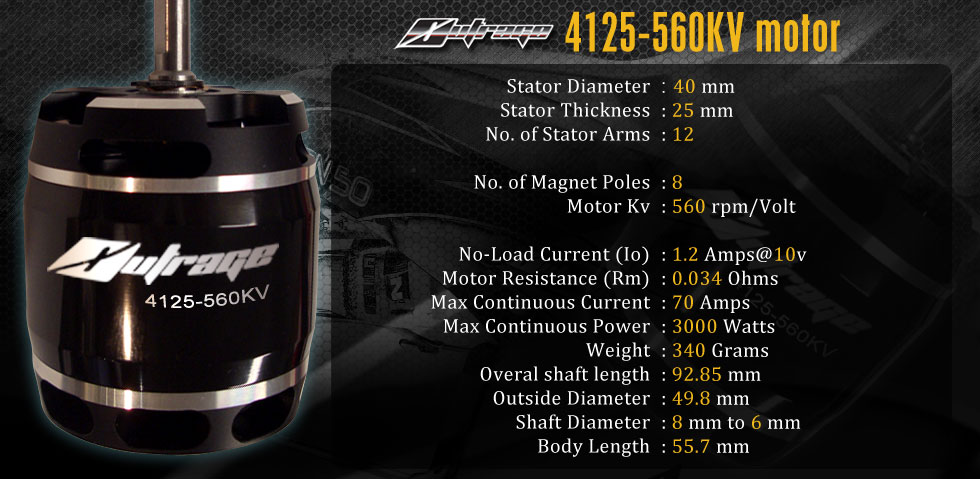

Specifications:
Stator Diameter ......................... 40mm
Stator Thickness ........................ 25mm
No. of Stator Arms ...................... 12
No. of Magnet Poles ..................... 8
Motor KV ................................ 560 rpm/Volt
No-Load Current (Io) .................... 1.2 Amps@10v
Motor Resistance (Rm) ................... 0.034 Ohms
Max Continuous Current .................. 70 Amps
Max Continuous Power .................... 3000 Watts
Weight .................................. 340 Grams
Outside Diameter ........................ 49.8mm
Shaft Diameter .......................... 8mm to 6mm
Body Length ............................. 55.7mm
Overall shaft length .................... 92.85mm
