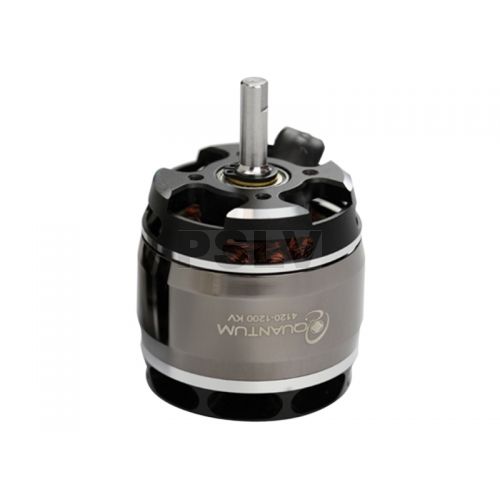

QT-4120-1200  Quantum Outrunner Brushless Heli Motor (4120-1200KV)

Stator Diameter 40MM
Stator Thickness 20MM
No. of Magnetic Poles 8
No. of Stator Arms 12
Motor Kv 1200 RPM/Volt
Max Cont Current 80 Amps
Max Cont Power 1780 Watts
Max Peak Power 2200 Watts
Weight 290 Grams
No-Load Current (lo) 3.20 Amps@10V
Motor Resistance (Rm) 0.010 Ohms
Outside Diameter 49.8MM
Shaft Diameter 8MM to 6MM
Body Length 50.7MM
Overall Shaft Length 72.7mm
Bearings ABEC-3 Bearings (8x16x5) 688ZZ
