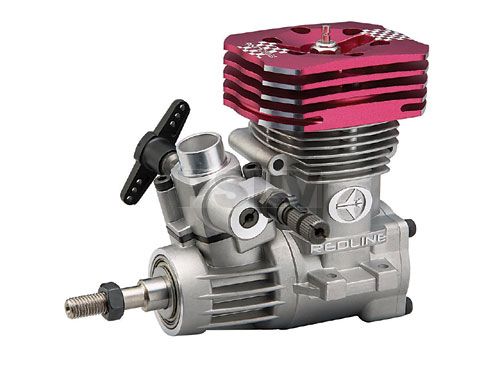

TTRG1156 -Thunder Tiger RL 56H Ringed Redline Helicopter Engine
Preço314,85€
|
FEATURES:
XC2 composite coating on cylinder liner to extend engine life and an etched criss-cross pattern to minimize friction Dual needle carburetor with a heat insulator mount and push-pull throttle lever Oversized CNC machined red anodized cylinder head Three year limited warranty through Hobby Services beginning at date of purchase
INCLUDES:
Thunder Tiger RL .56H Ringed Helicopter Engine with R3 Redline Glow Plug, two head shims, instructions, 2.5 & 3mm hex wrenches
REQUIRES:
Fuel: Heli blend with 10-30% nitromethane and 20% lubricant content Field equipment
SPECS:
Displacement: 0.553 cu in (9.05 cc)
Bore: 0.906" (23mm) Stroke: 0.858" (21.8mm)
RPM Range: 2,000 - 21,000
Output: 2.23 hp @ 17,500 RPM
Weight: 13.8oz (390g)
Distance Between Mounting Hole Centers Same Side: 0.71" (18mm)
Distance Between Mounting Hole Centers Opposite Side: 1.7" (43.5mm)
Width at Mounting Tabs: 2.04" (52mm)
Width of Crankcase Below Mounting
Tabs: 1.4" (35mm)
Length from Backplate to Front Bearing: 2.9" (73.4mm)
Length from Backplate to end of Crankshaft: 4" (102mm)
Height from Mounting Tab/top of Cylinder Head: 2.9" (73mm)
Heigth from Crankcase bottom/top of Cylinder Head: 3.5" (90mm)
Width of Cylinder Head: 1.8" (47mm)
