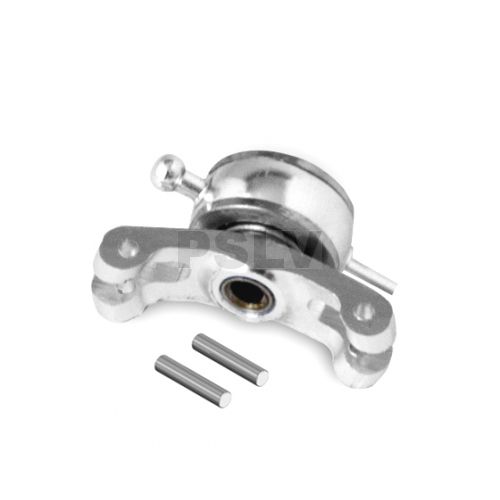

LX0304   Double Ball Bearing Tail Pitch Slider Assembly   130 X

Lynx Heli Innovations has redesigned the standard 130 X plastic tail pitch slider, using a combination of aluminum alloy and low friction brass alloy.
Tail pitch slider is one of the most critical components in any helicopter tails, in order to assure the best performance; lightweight and accurate precision of the bearing and slide bushing was our focus during the design.
After intensive test, Lynx define the rotation system with double radial bearing and for the slide bushing we used a particular alloy material Brass based, specifically design for low friction bushing application.
Tail pitch slider factory assembly is supported with dedicated equipment and expert human attentions to assure maximum quality and repeatability.
Details and design, strength, durability, accurate CNC tolerances, finish, and most important lightweight, will increase and assure tail response and precision, flight after flight, adding top performance in your 130X.
FEATURES:
- Direct replacement for the standard 130 X tail part
- Preassembled with lubricated bearing
- Included two pins diameter 0.7mm, length 3.5 mm for the correct assembly
- FEA (Final Elements Analysis) design assisted, achieve lightweight and maximum strength.
TECHNICAL SPECIFICATION:
- Main Body Material: Aluminum 7075-T6 – clear anodized finish
- Bearing Material: SST –ABEC5 Precision Class
- Slide Bushing Material: Low Friction Brass alloy
- Tail Pins Material: SST
- Assembly weight: 0.6g
PACKING LIST:
- 1 x 130X CNC Tail Pitch Slider factory assembly
- 2 x Tail Pins 0.7x3.5 mm
