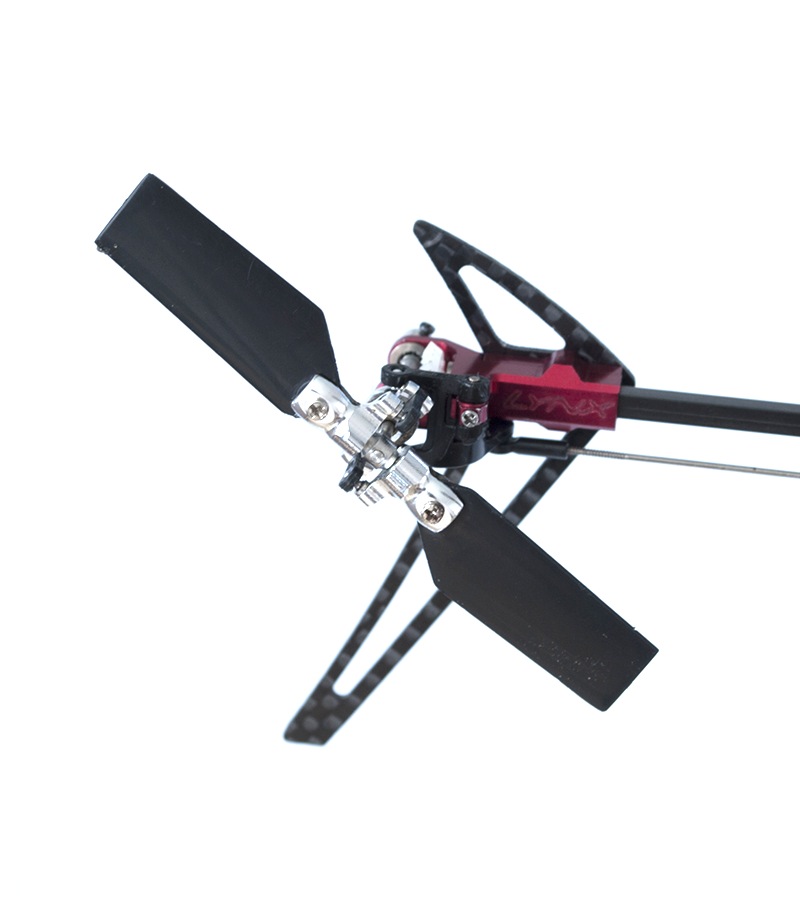

LX0353  Lynx Heli Innovations 130 X Tail Case / Vertical Fin Combo Red

Lynx Heli Innovations has redesigned the standard 130 X plastic tail case, using aluminum alloy.

Our tail case is different, being constructed of two CNC parts, that once assembled surrounds and locks the tail boom on all four sides.

Micro helicopter upgrades can be a trap – often they look nice but do little for function. Weight is of course critical. In particular, micro helicopter tail components are important were small weight differences can make a huge difference to final flight performance.

We spent hours optimizing the design to achieve the required strength with a final weight beyond compromise. We are pilots, and we expect top performance from our upgrades.

We have improved the standard gear mesh tolerance. This optimizes tooth mesh - reducing wear and vibration, with a huge increase in tail precision and strength.

For the best looking design the Lynx tail case is sold in combination with our lightweight carbon vertical fin (LX0311). This tail case combo adds performance to your 130X tail system.

FEATURES:

- Direct replacement for the standard 130 X tail components.

- Increase tail response, optimize gear mesh and reduce vibration.

- Flanged radial bearing ABEC 5 class assures the perfect tail shaft and torque shaft support, reducing vibration.

- “Closed box” design surrounds and locks the tail boom on all four faces.

- FEA (Final Elements Analysis) design assisted, resulting in lightweight and maximum strength.

TECHNICAL SPECIFICATIONS:

- Tail case material (2 pc) : Aluminum 7075-T6 – red anodized finish.

- Bearing material: SST – ABEC5

- Screw material: Carbon steel plated

- Perfect match combo with LX0311 - 130 X - Lightweight carbon fiber vertical fin

- Tail case assembly weight: 2.3g

- Tail case combo assembled (tail case + vertical fin) weight: 3.05g

PACKING LIST:

- 1 x 130 X – CNC Tail case

- 1 x 130 X – CNC Tail plate

- 1 x 130 X – Ultra-light carbon fiber vertical fin LX0311

- 3 x Flanged bearing 1.5x4 h2

- 1 x M1.2x2 Pan head screw silver

- 3 x M1.4x3 Pan head screw silver
