LX0381  Lynx Heli Innovations Tail Grip Service Bag 130 X

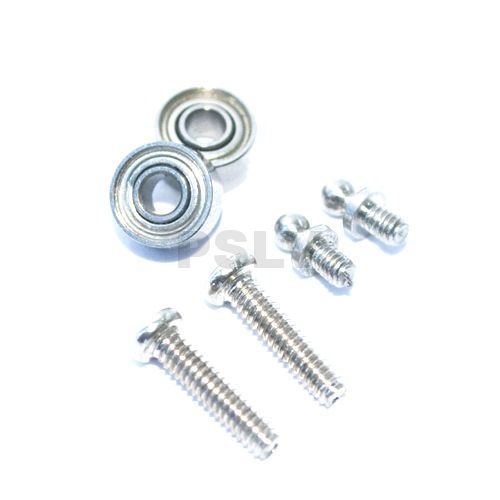

PACKING LIST:

-           2 x  Link Ball 1.5x2/M1.2

-           2 x 1.5X4X2 Radial Bearing

-           2 x M1.4x6 Pan Head Screw Silver

TIPS AND ADVISES FOR BEST SERVICE:

Link Ball 1.5x2/M1.2: Remove original one using a smaller plier (the base of the ball have flange nut), heat with lighter or solder iron the ball in order to remove it easy.  Remember add lock thread once new one linkage ball are installed, not over tighten.

1.5X4X2 Radial Bearing: Original bearing are installed with lock thread compound to assure the best assembly precision, the fast and easy way to unlock the bearing form they position is put 5 minutes in boil water.  Use smaller pliers to manipulate it and with a 1.5 hex screw drive you can easy push out the bearing.  Dry and clean the parts before insert new bearing, Remember to add a thinner layer of Blue lock thread around the outside bearing ring and insert the bearing just like you remover it. To push in place the bearing you can operate with 3 mm hex screw driver.

M1.4x6 Pan Head Screw Silver: These screws just replace the original one used to lock tail blade.
