LX0382  Lynx Heli Innovations Tail Case Service Bag 130X

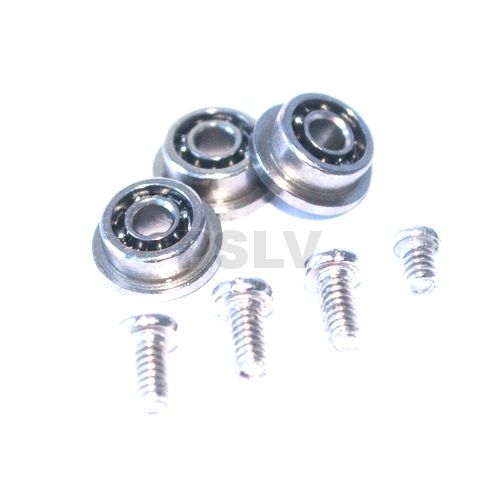

PACKING LIST:

-           3 x 1.5X4X2 Flanged Bearing

-           1 x M1.4x2 Pan Head Screw Silver

-           3 x M1.4x3 Pan Head Screw Silver

TIPS AND ADVISES FOR BEST SERVICE:

3 x 1.5X4X2 Flanged Bearing: Original bearing are installed with lock thread compound to assure the best assembly precision, the fast and easy way to unlock the bearing form they position is put 5 minutes in boil water.  Use smaller pliers to manipulate it and with a 1.5 hex screw drive you can easy push out the bearing.  Dry and clean the parts before insert new bearing, Remember to add a thinner layer of Blue lock thread around the outside bearing ring and insert the bearing just like you remover it. To push in place the bearing you can operate with 3 mm hex screw driver.

M1.4x2 and M1.4x3 Pan Head Screw Silver: These screws just replace the original one used to lock tail blade.
