LX0458   Lynx 130X T.B.S. System Ultra Tail Boom Combo Set Red Devil

Lynx Heli Innovations is always looking toward new ideas and solutions that really do something… and has redesigned the standard 130X tail boom, introducing the innovative T.B.S tail boom system (Torque Bearing Support).

COMBO NOTE: Lynx T.B.S tail boom cannot used with standard (short) tail boom support and need extended tail boom support.

Lynx offer this combo as solution for who don’t dispose of extended tail boom support.

Any aftermarket extended tail boom support can be used, the minimum length usable is 100 mm , Lynx  ones are 120mm that assure the best tail support.

T.B.S tail boom will replace the standard 130x tail boom and support with bearing the torque shaft that will rotate smoothly without any vibration.

You will immediately feel the difference because the sounds of your 130x will not the same anymore.

Vibes caused from the torque shaft reduce efficiency and fly precision because are a lost of energy and affect the FBL system precision.

Once Lynx T.B.S tail boom will be installed in your 130X you will be amazed about the new overall fly feeling and precision.

Lynx T.B.S tail boom is a composition of OEM Carbon Fiber square boom with a high tensile stress aluminum tubing were we place the radial bearing and other components for the perfect function.

The parts are assembled using a special Loctite brand adhesive, that assure the best assembly cohesion.

Lynx test many different assembly solution and in particular the position of the bearing in the boom assembly, in the end Lynx decided to place the bearing closer to the frame to eliminate harmonical vibes come from the supported torque shaft.

Released T.B.S tail boom is the result of long and intensive test to assure the best quality and less vibe as possible.

Helicopter upgrades can be a trap – often they look nice but do nothing for function, and only add weight.

Lynx T.B.S tail boom weight only 0.5 g more than standard boom… and add incredible features.

Details and innovative ideas and design, combined with strength, durability, accurate CNC tolerances, finish, and most important lightweight, will increase and assure flight precision, flight after flight, adding top performance in your 130X.

Lynx upgrade design: the new frontier of innovative, lightweight and high precision upgrade parts for your helicopters..

FEATURES:

- Lynx introduce the innovative T.B.S (Torque Bearing Support) tail boom system that supports the torque shaft like a big size Heli.

- Direct replacement and improvement for your 130X.

- Smooth and vibe free tail transmission system.

- Optimized lightweight design.

- Optimized assembly that increase tail boom rigidity

- Optimized assembly the reduce boom torques rotation.

- Optimized bearing support position to eliminate harmonica vibes.

- Design assisted by FEA (Finite Element Analysis) to achieve light weight and maximum strength.

TECHNICAL SPECIFICATIONS:

- Square Tail Boom Sectors: Carbon Fiber

- T.B.S Tubing: Aluminum 7075-t6 – Black anodized

- Bearing material: Chrome steel alloy – ABEC 5 precision class – manufactured in Japan

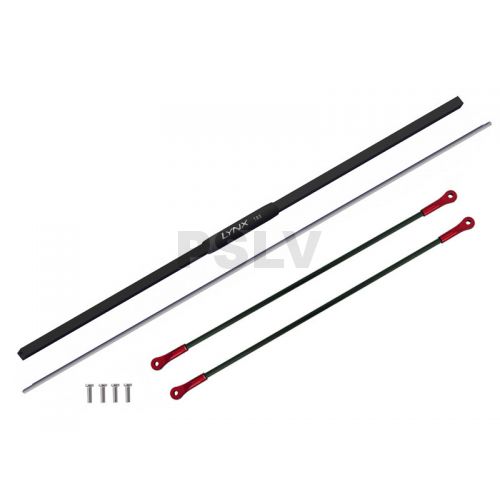

 PACKING LIST:

1 x 130X T.B.S. tail boom

1 x 130X Carbon Steel torque shaft

2 x 130X Extended Tail Boom Support (120 mm long) – Silver

4 x Pan Head Self Taping Screw M1.6x5
