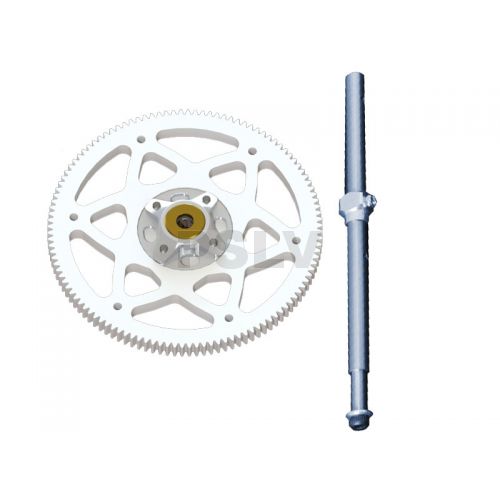

LX0509  Lynx Heli Innovations 130X One Way Hub Assembly 116T Main Gear

Lynx Heli Innovations has designed autorotation system for 130X adding one way system and increasing 1 mm the main gear thickens.

Lynx LX0509 autorotation system has Aluminum Hub, Reinforced CNC Main Gear 116T and Titanium Main Shaft.

Smooth power transmission and Heavy Duty specification will support your 130X Overpowered need to next level.

We spent time optimizing the design and fly testing to achieve the required strength and resistance with final design without compromise.

We are pilots, and we demand a heli that can support any over-stress fly condition.

FEATURES:

- Autorotation features.

- Tecnopolymer Precise and reinforced CNC main gear assures best wear resistance and perfect tooth mesh.

- Super precise Main gear concentricity for smooth and silent power transmission

- Main gear thickness 3mm and special “cross radius” cut design for the ultimate main gear rigidity

- Titanium G6 Main Shaft increase frame rigidity – pre assembled with Lynx collar.

- One way hub with Japan brand one way bearing and super precise brass bushing assure perfect geometrically assembly and no play.

- Fine shims spacer for the ultimate assembly and vertically play free function

- Direct replacement of std 130X main gear / main shaft system

- FEA (Finte Elements Analysis) assisted, achieve lightweight and maximum strength.

TECHNICAL SPECIFICATION:

- Main Shaft Material: Titanium G6

- One Way Hub Material: Aluminum 7075-T6

- One Way Bearing: Chrome Steel Japan brand

- Assembly weight: 10.4 g

PACKING LIST:

- 1 x One Way Titanium main shaft pre-assembled with Lynx collar

- 1 x 116T M0.4 Main Gear assembled with One Way Hub

- 2 x Brass Shims for the best play free adjustment.

INFO AND TIPS FOR THE BEST ASSEMBLY:

Cause micrometric one way bearing lenght tollerances, Lynx add 2 Brass shims in order to get the best "play free" smoth rotation.

Start the installation with 2 shims, test with hands the free one way rotation, in case you feel any friction, remove one shims a times untill get the best compromise between rotation and longitudinal play.
