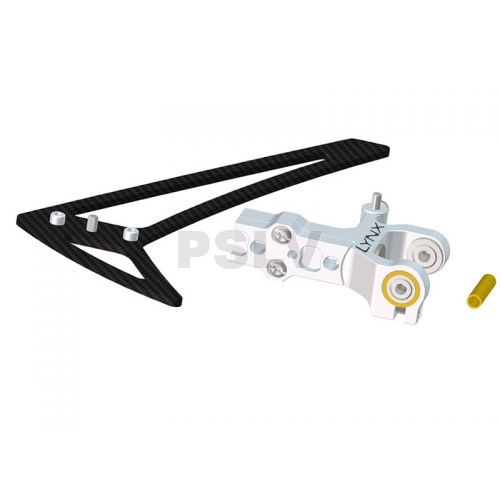

LX0724  Lynx Innovations 130 X - Ultra Quad Bearing CNC Tail Case Set

Lynx Heli Innovations is always looking for a better way of doing things, introducing innovative solutions.

Thanks our passion and all experience we made with the previous tail case edition we are really proud to present our “Replica Edition”.

For Lynx the “Replica Edition” is in general product speaking is the evolutes design series.

Replica Edition for Lynx means the competition series that has improved function and extra features.

Our 130X “Replica Edition” Tail case is a native quad bearing tail case, where we add innovative system to support the left side bearing for the easy gear maintenance and play adjust.

For the best looking design the Lynx tail case is sold in combination with our lightweight carbon vertical fin (LX0311). This tail case combo adds performance to your 130X tail system

FEATURES:
- Quad bearing for the ultimate tail shaft support reducing the well know tail shaft / bearing play for the ultimate smooth and vibe-free operation fly after fly.
- Innovative Lynx Heli Innovations removable and adjustable left Bearing Block for the quick gear maintenance and easy play / position adjust without need of any annoying shims.
- Direct replacements for the standard 130X.
- Reduced vibration and increased tail system performance.
- FEA (Final Elements Analysis) assisted design, to achieve the lightest weight with maximum strength.
- Flanged and Radial bearing ABEC 5 class assures the perfect tail shaft and torque shaft support, reducing vibration.
- Lynx Innovative “Closed box” design surrounds and locks the tail boom on all four faces.
- Designed to work with standard or upgraded 130X tail shaft.
- Lynx recommend tail shaft LX0636: 130 X - TAIL SHAFT ASSEMBLY - V2

TECHNICAL SPECIFICATIONS:
- Tail case material (2 pc) : Aluminum 7075-T6 – clear anodized finish.
- Bearing material: SST – ABEC5
- Screw material: Carbon steel plated
- Perfect match combo with LX0311 - 130 X - Lightweight carbon fiber vertical fin
- Tail case assembly weight: 2.90g
- Tail case combo assembled (tail case + vertical fin) weight: 3.25g
