LX8000 Lynx Heli EOX Motor 1101-2S-8350KV
 As imagens são meramente ilustrativas e sem valor contratual Clique para ampliar |
Preço50,37€
|
LX8000 Lynx Heli EOX Motor 1101-2S-8350KV
Lynx EOX brushless motors a new generation of high power, high efficiency helicopter motors.
Our new EOX motors will open your eyes to performance.
Developed by Lynx, these motors are perhaps the ultimate helicopter upgrade.
Featuring a single wire coil assembly for the best in efficiency, power and cool running.
High temperature rating Neodymium magnet and high quality material and component graduate EOX motor by Lynx a Limit Edition.
Our first motor, the EOX-1101 is designed specifically for the 130x in order to provide maximum power without overheating the 130x main board.
Overall dimension was designed to fit in the standard frame without touch battery or servo.
EOX 1101 is sale with standard 130X cable connector plug and combo with Carbon Fiber Plate stiffener and hard steel 10 tooth pinion.
So the next time you want to upgrade your helicopter – think Lynx EOX!
TECHNICAL SPECIFICATION:
| Motor Kv | 8350KV |
| Max Lipo Cell | 2s - (8.4 V MAX) |
| Max Continuous Current | 9A |
| Max Continuous Power | 75.6W |
| Stator Diameter | 11mm |
| Stator Length | 10mm |
| No. of Stator Arms | 9 |
| No. Magnet Poles | 6 |
| Single Wire Diam. | 0.25 mm |
| Max Continuous Current | 9A |
| Max Continuous Power | 75.6W |
| Weight | 8.9g |
| Outside Diameter | 13.8 mm |
| Body Length | 17.3 mm |
| Shaft Diameter | 1.5 mm |
| Overall Shaft Length | 25 mm |
| Motor Timing | 5deg |
| Drive Frequency | 8kHz |

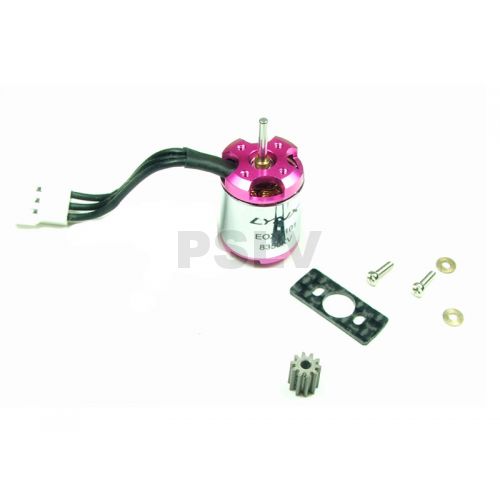

PACKING LIST:
1 x EOX 1101 Motor with preinstalled conector plug
1 x Hard steel pinion 10 tooth
1 x Carbon Fiber Motor Stiffener plate
2 x PAN head screw M1.4x5
2 x Brass Washer
IMPORTANT USER INFORMATION:
We REMIND that Lynx EOX 1101 – 2S 8350 KV CANNOT used with 3S LiPo configuration, MAX Input Voltage is 8.4V, 2S LIPO.
Extra Voltage can damage the Motor and you’re ESC.
EOX 1101 has 8350 KV, that are higher than standard motor. During all our test we define the 10T pinion the best compromise between RPM and power draw/fly time. With Standard main gear and 10T pinion , max RPM will be around 5500.
Lynx offer as option the 9T and the 11T Pinion as well for you personal Heli set-up
