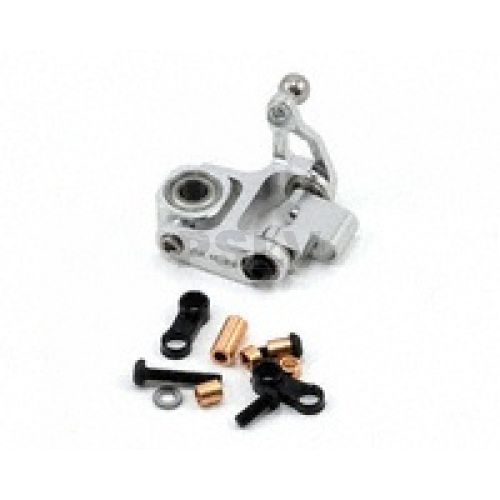

H25134 250 Metal Tail Pitch Assembly
 As imagens são meramente ilustrativas e sem valor contratual Clique para ampliar |
Preço29,60€
|
| Product: | |
 |
|
| Illustration: | |
 |
|
| Package: | |
 |
|
| Instruction: | Specification: |
|
●Utilizes dual point attachment design for zero play and higher precision control feel. ●Constructed with CNC aluminum alloy, with precision ball bearing at moving points, improving structure rigidity and smoothness, allowing rudder control to be more precise and smooth. ●6061-T6 Aluminum alloy material and CNC processed. ●Use for H25129 Metal Tail Torque Tube Unit. ●Must with H25021A Tail Pitch Assembly. H25066A Tail Pitch Control Link. |
●Linkage ball A(0#x2) × 1(Φ3.5x5.3mm) ●I-shaped Arm × 1 ●Mount Link × 1 ●Bearing F681XZZ × 2(Φ1.5xΦ4xΦ5x2mm) ●Collar × 1(Φ1.5xΦ2.5x5mm) ●Socket button head screw × 1(0#x8mm) ●Washer × 1(Φ1.5xΦ3x0.5mm) ●Tail pitch control link × 2(4.9x1.4x2.4mm) ●Collar A × 2(Φ1.5xΦ2.3x2.4mm) ●Collar B × 2(Φ1.5xΦ2.3x1.4mm) ●Socket button head screw × 2(0#x4mm) ●Bearing holder × 1(8.5x7.3x5.6mm) ●M2 Set screw × 2(Φ2.5x2.4mm) ●Washer × 1(Φ3xΦ4.8x0.6mm) ●Bearing MR63ZZ × 2(Φ3xΦ6x2.5mm) |
