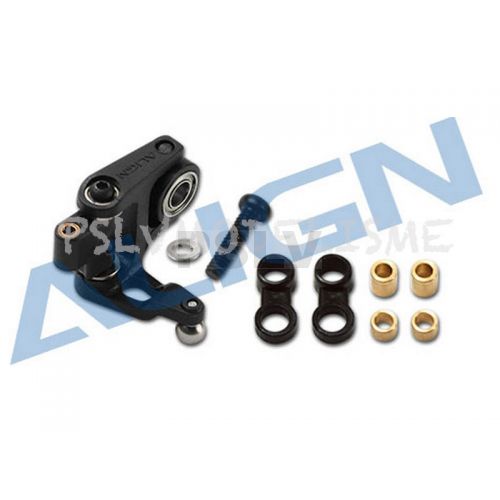

H25T001XXT 250 Plus Tail Pitch Assembly
 As imagens são meramente ilustrativas e sem valor contratual Clique para ampliar |
Preço21,56€
|
| Instruction: | Specification: |
|
●Utilizes dual point attachment design for zero play and higher precision control feel. ●Use for H25129 Metal Tail Torque Tube Unit. ●Must with H25021A Tail Pitch Assembly. ●Must with H25066A Tail Pitch Control Link. |
●Linkage ball A(0#-80x2) × 1(Φ3.5x5.3mm) ●I-shaped Arm × 1 ●Mount Link × 1 ●Bearing F681XZZ × 2(Φ1.5xΦ4xΦ5x2mm) ●Collar × 1(Φ1.5xΦ2.5x5mm) ●Socket Button Head Screw× 1(#0-80x8mm) ●Washer × 1(Φ1.5xΦ3x0.5mm) ●Tail pitch control link × 2 ●Collar A × 2(Φ1.5xΦ2.3x2.4mm) ●Collar B × 2(Φ1.5xΦ2.3x1.4mm) ●Socket button head self tapping screw × 2(T1.5x4mm) ●Bearing holder × 1(8.5x7.3x5.6mm) ●Washer × 1(Φ3xΦ4.8x0.6mm) ●Bearing MR63ZZ × 2(Φ3xΦ6x2.5mm) |
Não há imagens adicionais para este artigo.
