H70068 Aileron Carbon Fiber Linkage Rod Set
 As imagens são meramente ilustrativas e sem valor contratual Clique para ampliar |
Preço10,85€
|
| Product: | |
 |
|

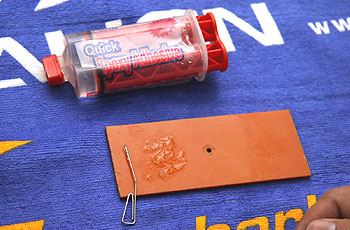

| Illustration 1:Mix thoroughly suitable amount of epoxy. |

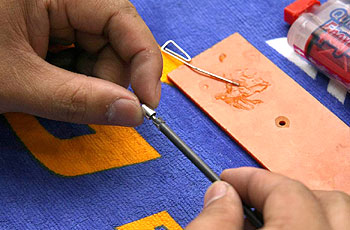

Illustration 2:Apply generous amount of epoxy on the tips of carbon tube after sliding over the linkage rod. (Note: for quick drying epoxy, work fast as it must be applied prior to curing) |
 |
|

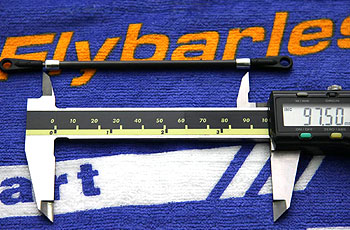

| Illustration 3:Slide the carbon end caps on both sides of the carbon tube. | Illustration 4:Thread the ball links onto the linkage rod until the base to base length is 97.5mm. |
 |
 |

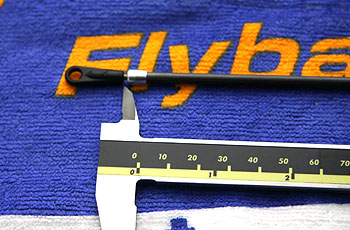

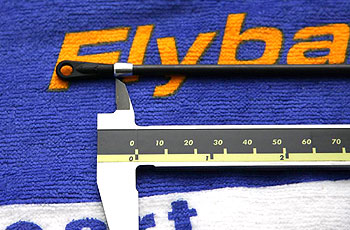

| Illustration 5:If gap exists between the ball link and end caps after correct length has been achieved, slide the end caps outwards to cover the gaps (note: must be done before epoxy cures) | Illustration 6:Wipe away excess epoxy and set it aside to cure. |
 |
 |
|

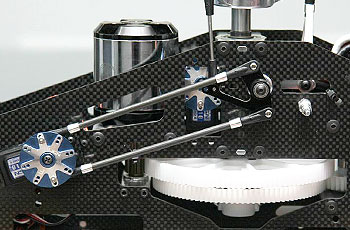

Illustration 7:Pop the finished link back between aileron servo horn and bell crank. |
|
 |
|

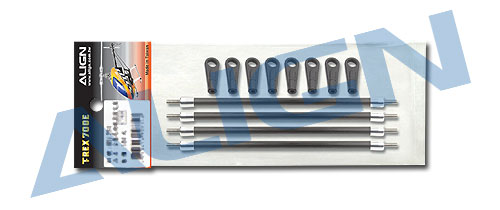

| Package: | |
 |
|
| Instruction: | Specification: |
| ●Use for T-REX 700E. |

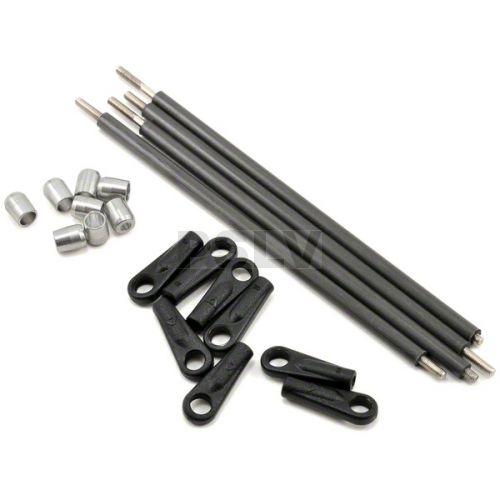

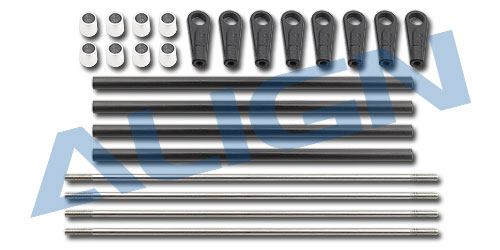

●700E Linkage x 4(2x110mm) ●700E Aileron Control rod Carbon Fiber Shaft x 8(4x5.4x6.5mm) ●700E Aileron Control rod Carbon Fiber Tube x 4(2.2x3.9x96mm) ●700N Ball Link x 8(5x20.5mm) |
