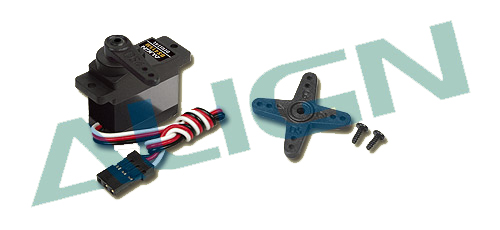

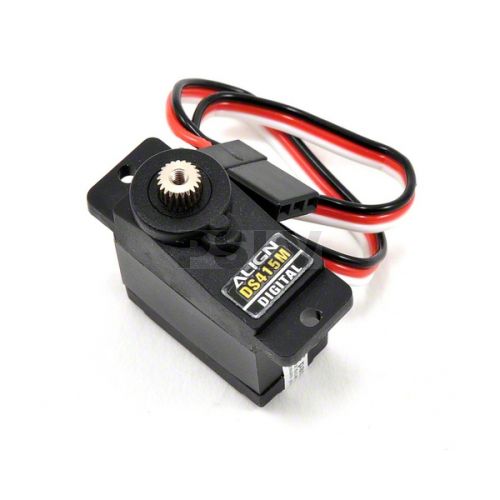

HSD41501 Align DS415M Digital Servo

Instruction

●Faster speed with high torque performance, allowing helicopter to perform with faster and higher precision.
●High rigidity, shock resistant metal gears with high strength composite alloy gears with durable structure characteristics.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
●Supports digital & analog control signal.
●Powerful and precise servo, suitable for T-Rex 250/450 CCPM cyclic use.

Specification

●Stall torque:2.0kg.cm(4.8V)
                   2.4kg.cm(6.0V)
●Motion speed:0.1sec/60°(4.8V)
                     0.08sec/60°(6.0V)
●Rating voltage:DC 4.8-6.0V
●Temperature range:-20°C~+60°C
●Dimension:22.9 x 12 x 25.8mm
●Weight:13.9g
●1520μs standard band
