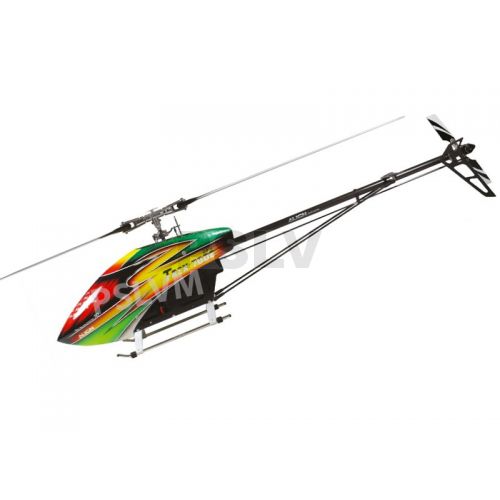

RH70E06XT T-REX 700E Pro DFC HV Super Combo
 As imagens são meramente ilustrativas e sem valor contratual Clique para ampliar |
Preço1.822,64€
|
| Product: | |||
  |
|||
| Focus Shot1(New style wrap around airbrushed fiberglasscanopy, with aerodynamic form to reduce wind resistance. 4 point anti-vibration mounts for quickinstall and removal.) | Focus Shot2(Equipped with the low CG DFC rotor head, exhibits exhilarating 3D performance and unimaginable flight speed.) | Focus Shot3(800MX features high efficiency, superior power, excellent torque, low current draw and low temperature; it’s capable of maintaining consistent torque and head speed through continuous 3D maneuvers.) | |
 |
 |
 |
|
| Focus Shot4(New style swash anti-rotation guide with embedded anti-wear material, effectively minimize the wear between swashplate long ball and guide.) |
Focus Shot5(Utilizes composite carbon material integration technique on frame structure for CCPM servos. Brand new CCPM direct servo linkage design ) |
Focus Shot6(Equipped with new high strength cnc m1helical main gear and tail drive bevel gear assembly, featuring reinforcedoverall gear structure and increased gear thickness, effectively improvesgear's anti torsion ability to prevent gear from deforming under extreme power,reducing gear wear and power loss.) | |
 |
 |
 |
|
| Focus Shot7(Equipped with brand new 700 3G carbonfiber main blades designed specifically for extreme 3D flights, featuringagility and stability, and new graphics paint scheme. The increased blade rigidity improves antitorsion characteristic during flight, and the new airfoil minimizes turbulencenear the blade tip, reducing blade noise and power loss.) | Focus Shot8(High quality new tail gearbox design, combined with new dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.) | Focus Shot9(Brand new tailblade designed to sustain optimal tail locking performance under high headspeed and extreme flight conditions.) | |
 |
 |
 |
|
| Focus Shot10(800MX(520KV) high efficiency, high torque brushless motor) | Focus Shot11(700 3G carbon main blades) | Focus Shot12(105 Carbon Fiber Tail Blade) | |
 |
 |
 |
|
| Focus Shot13(BL700H High Voltage Brushless Servo with CNC aluminum servo horns) | Focus Shot14(BL750H High Voltage Brushless Servo ) | Focus Shot15(3GX Programmable Flybarless System ) | |
 |
 |
 |
|
| Focus Shot16(Castle EDGE HV 120 Brushless ESC) | |||
 |
|
||
| Package: | |||
 |
|||
|
Instruction(3GX Programmable Flybarless System) : |
Specification(3GX Programmable Flybarless System) : | ||
|
●Brand new redesigned 3GX represents a new generation of multi function flybarless system. The dramatically improved performance will create immediate impact on any enthusiasts. ●3GX is currently the smallest and lightest flybarless system on the market. Two ports to directly connect Spektrum and JR satellite receivers, along with full support of Futaba's S-BUS system. ●Based on the 3G FL760 manual setup process, the 3GX can be setup in a few minutes through a simple process. In addition, the 3GX can support all of the CCPM swashplate system currently on the market including 90, 120, 135, and 140 degrees swashplates. ●Graphical illustrated instruction on the computer setup software directs the user through a step by step setup process, allowing for quick setups without omitting any steps. ●Support Bluetooth connectivity. With the soon to be released Bluetooth connectivity kit, 3GX can be programmed wirelessly from a PC. Eventually there will also be smartphone apps allowing live adjustments to 3GX without powering down. ●With 3GX's built in Align RCE-G600 governor function, no external governor is needed to reduce electronic wire clutters. ●Custom parameters have been opened up in 3GX to allow pilots to fine tune numerous settings for swashplate and rudder. Settings export feature allows custom settings to be shared amongst friends. ●3GX utilizes brand new gyroscope sensors of the highest specifications when compared to other flybarless systems currently on the market, allowing it to be used under harsh conditions. Dual axis plus rudder sensor dramatically improves swashplate and rudder correction precision compared to last generation 3G. This is clearly noticeable in stable hover as well as highly aerobatic routines. ●Suitable for helicopter of all class from 250 to 800, glow engine or electric powered. The superior vibration resistant characteristic is evident even when mounted with harder double sided mounting tape. ●3GX utilizes 16 bit processor which is 4 times faster than previous generation, along with a completely re-written firmware. The result is a dramatic stability improvement from previous generation, with stability that rivals a flybarred helicopter, yet posses explosive agility. ●With built in pirouette compensation function, 3GX is able to stabilize the helicopter on a fixed point during pirouetting maneuvers. Pirouetting flips type of maneuvers are easily accomplished with precision. ●3GX's rudder allows consistent rudder feel even under high speed conditions. This excellent control feel will allow pilot of all skill levels to experience the perfect integration between 3GX and helicopter. ●Support with APS gyro system and bring up more functions for your helicopter. With the APS gyro, the helicopter will have the ability to self stabilize, hold position as well as altitude, and even autonomous way point flights as well as return home. |
●Operating Temperature:-20~65 degree ●X and Y axis Operating Angle Range:-300~+300 degree ●Z axis Operating Angle Range:-600~+600 degree ●Size:36.5x25.2x15.6 mm Size ●Weight11g Weight ●Supports Wide/Narrow Bandwidth Digital and brushless servos ●Spektrum and JR Satellite antennas support (Replaces original factory receiver) ●Futaba S.BUS system support ●Built in governor function ●Maximum working voltage:8.5V ●Compatible with 1024/2048 resolution Spektrum receivers ●Supports 90/120/135/140 CCPM swashplates ●Field setup without the use of a PC ●Compatible with 2 to 5 blades rotor heads ●Support up to 6 servos ●Automatic servo type recognization |
||
| Specification(T-REX 700E DFC) : | |||
|
● Length: 1350mm ● Height: 360mm ● Width: 208mm ● Main Blade Length: 700mm ● Main Rotor Diameter: 1582mm ● Tail Rotor Diameter: 281mm ● Motor Drive Gear:12T ● Main Drive Gear:112T ● Autorotation Tail Drive Gear: 104T ● Tail Drive Gear: 22T ● Drive Gear Ratio: 1:9.33:4.37 ● Weight(With Motor): 3310g |
|||
