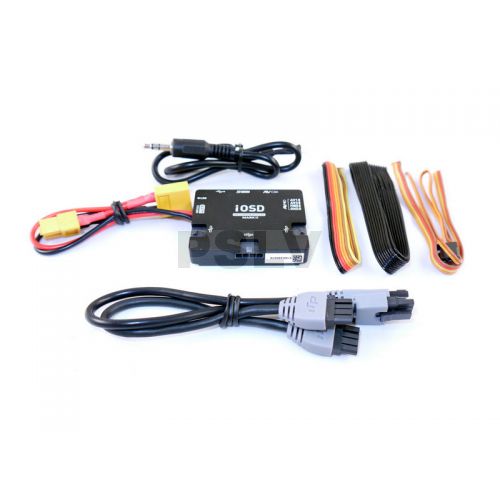

DJI-1063   DJI IOSD Mark II On Screen Display

With DJI mature reliable sensor technology, iOSD can collect precise & real-time flight data, transmitted to the ground end via video link in most clear digital and graphical expression way. It not only brings security to your science and technology experience, but also let your FPV dream get released with more joy.

The iOSD multifunctional integrated module has a built-in BEC module, when coupled with DJI professional autopilot system, video link and gimbal, it will be able to release the strong performance of the professional total solution for aerial photography.

Features:

• The flight data overlay, including power voltage, aircraft attitude, the GPS signal, flight mode, height, distance, speed, etc..
• Firmware upgrade online, free of charge for a better user experience and greater functionality.
• Can be simultaneously connected to a dual-camera switching between video sources.
• Can remotely switch DJI5.8G Illustrated Biography Channel.
• DJI flight control system WKM (follow-up support will WKH, Ace One, Ace WP).
• Compact 52 * 41 * 11mm; Weight 42g.
• Support for 3-6S lithium battery.

Detailed Features:

• Highly integrated, beautiful and practical, compact size

  The DJI iOSD adopts a highly integrated design which makes it very exquisite and practical. Many of the real-time aircraft flight information, such as the status and coordinates of the aircraft, are superposed on the video which will surely bring you a more involved and safety flight experience.

Support DJI professional autopilot systems

The DJI iOSD should be used in conjunction with the DJI autopilot system, such as WooKong-M and Ace One series, which will surely bring you a perfect flight performance. Depend on the DJIs accumulation of mature and reliable information integration technology, the iOSD can grab the most accurate first-hand flight data information in the shortest possible time.

Accurate Real-Time Flight Data & Signal Superposition

The DJI iOSD can collect real-time video and flight data, which will help you to obtain the aircraft status information during flight. It can display power voltage, flight velocity, height, distance from the home point, horizontal attitude and GPS satellite number, etc.

• Support double video sources input, switchable during flight.

  The DJI iOSD supports two video input sources: PAL or NTSC mode, which can be selected remotely by an R/C transmitter switch. By doing this the pilot can achieve double video alternation during flight and can also set one source for the aerial camera and the other one for FPV, which will ensure the nose direction of the aircraft is under control and a safety return while shooting wonderful footage.


• Real-time remote switch of video link channels

  The R/C TX switch can also change the wireless video transmitter channel remotely when user uses the wireless video transmitter designated by DJI. This design has brilliantly avoided the inconvenience of manual switch on the ground. When there is video signal interference during flight the pilot can switch the channels immediately to finish the flight mission.


• Free online upgrade

  The DJI iOSD has a USB interface for future online upgrade in order to get a better user experience and free functional escalation.

Built-in BEC module, support 3s-6s LiPo

DJI iOSD has a built-in BEC module which supports 3S 6S LiPo battery. It is on the one hand for the power supply of the camera, on the other hand for the power supply of the main controller to improve the power supply reliability of the main controller.

Specifications:

• DJI SKU/Part Number: CP.IS.000001
• Video Input Model: PAL/NTSC
• Video Output Model: PAL/NTSC
• Temperature: -20°C - 70°C
• Size: 52mm X 41mm X 11mm
• Weight: 42g
• Voltage: 3S - 6S
• Current(Typical Value): 51mA@25.2V, 87mA@12.6V
• Rated Power: 1.25W
• Controller Supported: WKM
• Build-in Function: iOSD Information Transmission; Video Transmission, Two Video Signal Channels Input & Switch; Channel Switch Supported for the Wireless Video Transmitter Module specified by DJI; DJI Z15 Supported

Please ensure you have updated your controller to the latest version before installing this OSD
