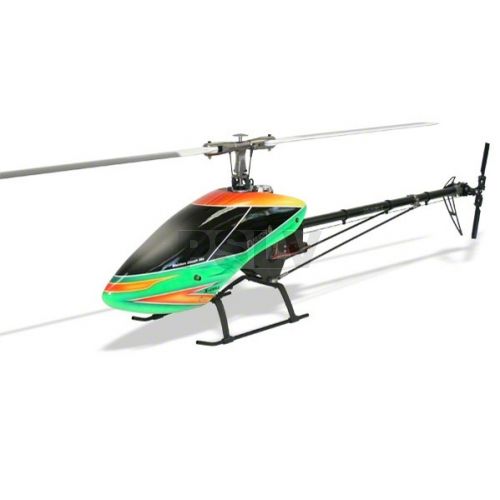

1029-1- Furion 6 Electric Flybarless Helicopter Kit

Shred the skies with the Furion 6 from Miniature Aircraft! This electric flybarless helicopter kit is built to support powerful electric motor and ESC combos with its graphite main frame, CNC aluminum bearing blocks, machined Delrin main gear with autorotation, and 6061-T6 aluminum components throughout. A new lightweight swashplate design is direct-driven from the servos in a 3-point arrangement for hours of worry-free fun. The Furion 6 comes with a front gyro mount and easily accessible battery tray that is removable for quick battery changes, while the epoxy-glass canopy has been painted in fluorescent orange and green for stunning looks and instant visibility. These features and more make the Miniature Aircraft X-Cell Furion 6 a great choice for expert 3D aerobatic pilots.

Furion 6 Flybarless Features:

• The swashplate control system is direct driven from the servos in a 3 point arrangement.
• Model designed to support high power output electric motors
• New lighter swashplate design will provide hours of trouble free operation
• Front gyro mount
• Removable battery tray for quick and easy battery changes.
• Machined main gear results in ultra smooth drive train
• High Visibility Painted Epoxy-Glass Canopy by CanoMOD™
• Bearings:
  • (4) Thrust Bearings
  • (1) German Heim Ball
  • (1) Torrington One-way Clutch Bearing
  • (33) Ball Bearings

Chassis Features:

• Sturdy Graphite Main Frame Unit
• Simple Construction
• CNC Aluminum Bearing Blocks
• CNC Delrin Machined Main Gear w/Autorotation
• True T6-6061 Aluminum Components
• Quality Bearings Used Throughout
• CNC Aluminum Tail Drive Pulleys
• Elevated Battery C.G. (Center of Gravity)
• Hardened Main Shaft (10mm)
• Direct Controlled 120° CCPM
• Aluminum Boom Clamps
• Motor Supported by Aluminum Mount
• Motor Shaft Lower Bearing Support
• 109 Tooth x 12mm Main Gear
• Optional Pinion Gear Available (12-15 Tooth)
• Removable Battery Tray

Flybarless Rotor Head Features:

• Full Ball Bearings/Thrust Bearings
• Heavy Duty Hiller Rods
• 8mm Head Axle
• CNC Machined Aluminum Swashplate
• Hex/Hardened Control Balls
• CNC Aluminum Head Button
• CNC Aluminum Blade Grips
• High Quality Swashplate Heim Ball/Ball Bearing
• Simple Sleek Design
• 1-Piece Dampers

Tail Rotor Features:

• Full Ball Bearings
• Graphite Tail Fin
• Secure CNC Aluminum Tail Rotor Clamps
• 22mm Lightweight Aluminum Tail Boom
• Positive Control System
• 2mm Control Rod
• Hardened Tail Rotor Output Shaft
• Carbon/Aluminum Boom Supports

Model Specifications:
Length: 1203mm (47.37")
Height: 384mm (15.125")
Rotor Span: 1365-1405mm - 600-620mm Blades
Tail Rotor Span: 260mm - 95mm Blades
Avg. Kit contents Weight: 3.75lbs (1.7kg) (includes painted canopy)
Avg. Ready-to-Fly Weight: 6lbs-6.3lbs (2.7-2.9kg) (less Batteries)
Main Drive Ratio: 6S - 8.38:1 / 10S - 9.08:1
Tail Drive Ratio: 4.15:1

6S Battery Setup:
Recommended Motor KV Range: 850-900
Gear Ratio: 8.38:1
Battery Size: 6S 5000mah
Main Rotor RPM: 2100-2300
Motor Shaft Size: 6mm x 30/32mm

10S Battery Setup:
Recommended Motor KV Range: 540-560
Gear Ratio: 9.08:1
Battery Size: 2 x 5S 4000-5000mah
Main Rotor RPM: 2200-2400
Motor Shaft Size: 6mm x 30/32mm

Needed to Complete:

• Brushless electric motor (6S: 850-900KV Range / 10S: 540-560KV Range)
• Motor shaft dimension: 6mm x 30/32mm
• Electronic Speed Control (ECS) suitable for use in R/C helicopters
• Lithium Polymer Batteries: 6 cell 5000mah or 10 cell (2 x 5S) 4000-5000mah setups are recommended
• Cyclic servos (Miniature Aircraft USA recommends high quality cyclic servos with no less than 80 oz. in. of torque.)
• R/C helicopter gyro (Miniature Aircraft USA recommends a “heading hold” style gyro)
• Rudder servo suitable for use with the gyro you choose.
• R/C helicopter transmitter and receiver with at least 6 channels, and eCCPM capabilities.
• Receiver battery pack, or BEC
