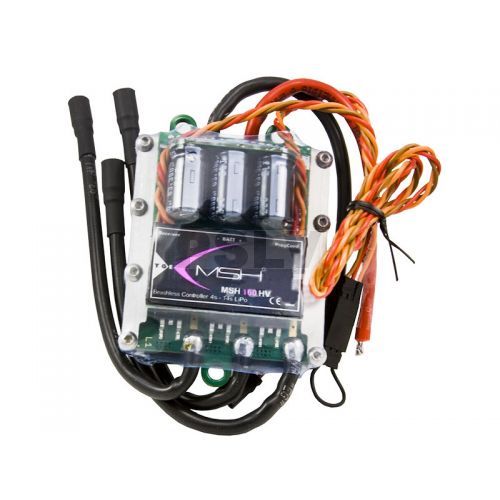

MSH71069 ESC MSH by YGE 160 HV

YGE top class ESC for 700 and more Helicopters up to 14S with dissipator

German engineering and quality.

Very good governor mode allowing low and high rpm flight condition with the same pinion.

a ratio from 1 to 2 is easily achievable allowing to benefit of the excellent low rpm capabilities of the flybarless modules.

Specification
- 160A maximum continuous full power current with adequate cooling.
- 4 to 14s LiPo, with under voltage protection by power reduction.
- 12 to 42 cells NiMH, with under voltage protection by power reduction.
- disconnectable under voltage detection.
- optocoupler.
- Speed regulation (Governor mode).
- Soft start.
- Active free-wheel, allowing unlimited part load operation.
- Automatic or 6 step adjustable timing.
- Continuously adjustable F3A brake.
- 3 steps adjustable regular back EMF brake.
- Switching rate: 8 to 16 kHz
- Speed limit: 240,000 RPM (2-Pole motors)
- Temperature and overload warning.
- Anti sparkling circuit: reduces connection sparkles
- Programming with the ProgCard II
- Weight 104g, 156g with cables
- Dimension 69mm x 53mm x 26mm
