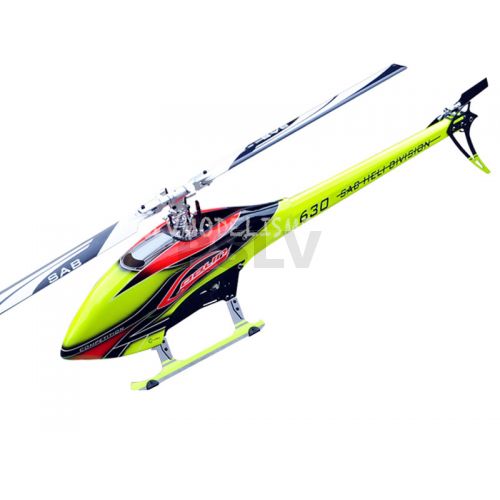

SG633  Goblin 630 Flybarless Electric Helicopter Green Kit

General Specifications

• Main rotor diameter:  1428 mm (with 630 mm blades)

• HPS Head

• Main blade length: 630 mm

• Tail rotor diameter: 285 mm

• Tail blade length: 105 mm

•  Main shaft diameter: 12 mm

• Tail shaft diameter: 6 mm

• Spindle shaft diameter: 10 mm

 Gear Ratios 8.6-11.9 : 1

• Weight including electronics: 3320 g (excluding flight battery).

• 22T motor pulley included (other pulley sizes available)

 Cyclic Servos: Standard size (40mm)



• Tail Servo: Standard size (40mm)



• Typical Speed Controller: 120A



• Motors: (Max Diameter: 64 mm, Max Height: 64 mm)



• Battery compartment: 60x58x350mm (adaptable to 64x58x350mm)











Kit Includes:



• 22T motor pulley (other pulley sizes available)



• 2 battery tray



• 630 mm main blades



• 105 mm tail blades





The following motor pulleys are available



18T Pulley (P/N H0015-18-S) Ratio 11.9:1



19T Pulley (P/N H0015-19-S) Ratio 11.3:1



20T Pulley (P/N H0015-20-S) Ratio 10.7:1



21T Pulley (P/N H0015-21-S) Ratio 10.2:1:



22T Pulley (P/N H0015-22-S) Ratio 9.8:1



23T Pulley (P/N H0015-23-S) Ratio 9.3:1



24T Pulley (P/N H0015-24-S) Ratio 8.9:1



26T Pulley (P/N H0015-26-S) Ratio 8.6:1





All these motor pulleys are for a 6 mm motor shaft.
