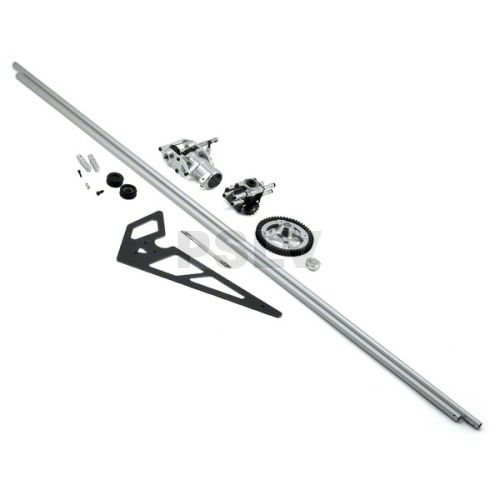

320-100  Synergy E6/7 Torque Tube Conversion Kit

This is an optional Synergy Torque Tube Conversion Kit, and is intended for use with the  Synergy E6/7 helicopter.

NOTE: It is highly recommended that you read the entire manual prior to assembly.

Includes:

• (1) CF Vertical Fin – TT E7 1pce (yes, this conversion requires a new CF vertical fin)
• (1) 18T Front Trans Bevel Gear (machined delrin gear)
• (1) 18T Front Trans Mushroom Gear (machined delrin gear)
• (1) 20T Bevel Gear – E7 (machined delrin gear)
• (1) 20T Bevel Mushroom Gear – E7 (machined delrin gear)
• (1) 12T Spur Gear (CNC hard coat aluminum gear)
• (1) 54T Spur Gear (machined delrin gear)
• (6) TranSupport Standoff
• (1) Front Mushroom Gear Bearing Block
• (1) Bevel Gear Top Bearing Block
• (1) Spur Gear Bottom Bearing Block
• (1) Tail Box
• (1) Tail Box Plate Left
• (1) Tail Box Plate Right
• (1) Tail Box Plate Spacer
• (1) Output Shaft Spacer
• (1) Tail Box Bearing Spacer
• (2) 2mm Bevel Gear Pin
• (1) 2mm Spur Gear Pin
• (1) Spur Gear Shaft
• (1) 6mm Tail Output Shaft (included for those who run bent tail output shafts and dont know it)
• (1) 6mm Shim
• (1) Tail Bell Crank Mount
• (1) Spur Gear Hub (this is a very nice cnc hub to support the 54T Spur Gear)
• (1) Jesus Bolt Collar
• (1) Torque Tube E7
• (1) Torque Tube E6 (yes, you get a TT for your E6 if this is the way you decided to build the kit)
• (2) Torque Tube End
• (2) Torque Tube Bearing Housing
• (4) O-Ring
• (2) 6x13x5 Radial Bearing
• (2) 8x14x4 Radial Bearing
• (4) 12x18x4 Radial Bearing
• (3) 5x9x3 Radial Bearing
• (1) 5x10x4 Radial Bearing
• (1) M3x6 Set Screw
• (3) M3x12 Set Screw
• (2) M2x10 Socket Head
• (4) M3x6 Type 1 Cross Recess
• (27) M3x6 Button Head
• (6) M3x8 Button Head
• (3) M3x10 Button Head
• (1) M3x30 Socket Head
• (1) M3x8 Socket Head
• (2) M2 Regular Nut
• (1) M3 Nylock Nut
• (1) M3 Washer
