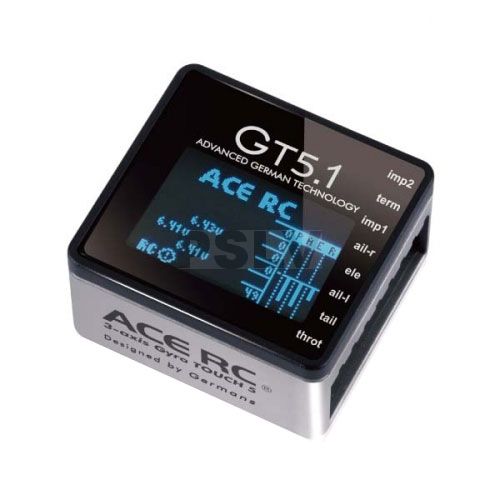

PTT8088 GT5.1 3 Axis Digital Gyro

The ACE RC G-T5 is a high performance 3-axis gyro, which brings you the most stable and instant flybarless flight experience. It is equiped with a large sized, OLED display and touch pad, together with an icon based menu which provides you with a user freindly setup. To maximize the compatibility. the GT5.1 also accepts many different receivers including conventional PPM, Spektrum Satellite and Futaba S-Bus receivers.

The built in MEMS sensor technology helps you control the helicopter precisely and has incredible real time response.

Specifications

• Output Display: 96x64 pixels OLED
• Input: Touch Pad
• CPU: 32-bit high speed processor
• Senor Speed: MEMS with ±500°/sec for X-Y-Z axis
• Tail pulse: 1520us/970us/760us
• Tail frequency: 50Hz - 333Hz
• Swashplate frequency: 50Hz - 200Hz
• Type of Swashplate: 90°, 120°, 135°, 140°
• Dimension (LxWxH): 29.5x32x16mm
• Weight: 15g

Features

• Extraordinary 3-axis flybarless system has full 3D capability
• OLED display with Icon-base menu
• Touch pad for easy setup without additional configuring tool
• Advanced and Latest MEMS sensors
• Support Spektrum satellite receivers
• Support normal receiver i.e. ThunderTiger TRS602DD
• Support a Futaba S.Bus receiver
• Support Futaba servo connector type
• Small size and lightweight
• High quality alloy case for better heat dissipation.
• NEW FEATURE - DSMX Available
• NEW FEATURE - DSMX / DSM2 Failsafe Support
