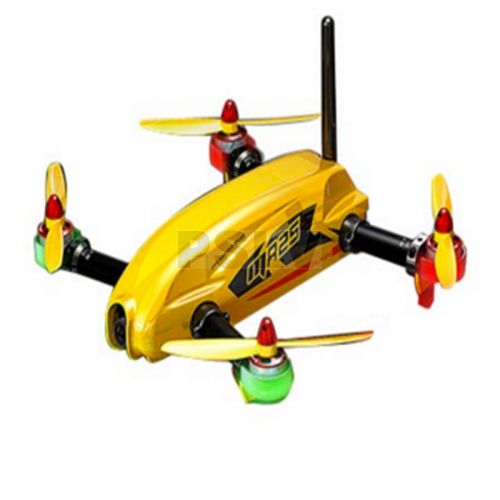

RM42501XT Align MR25 Racing Quad Combo
Preço399,00€
|
RM42501XT Align MR25 Racing Quad Combo
With all the top and modern Elec technology, the MR25 is equipped with 7 in one: Flight Controller system, utilizes a 32 bits high speed processor that results in a highly stable and reliable performance. Providing the most effective way of system and camera setting adjustment via APP iOS & Android system, as well as with Bluetooth 4.0 compatibility featuring low power long distance high speed transmission. The ideal Tilt angle camera provide instant tilting compensation in high speed flight.
The mainly structure is uniquely designed with adjustable motor tilt angle offering flexible compensation, and customizable 256 LED colors through APP. Superb lightweight and anti-collision frame design is also capable of 3D flips by moving aileron/elevator stick to the end. This is the one you definitely need, come and take a look!
MRS Flight Control
- Input Voltage: 10V~16.8V
- Operating Frequency: 800HZ
- Operating Temperature: -20°C~65°C(-4°F~149°F)
- Maximum Angular Speed: Aileron/Elevator 400°/sec, Rudder 45°/sec
- Maximum Tilting Angle: 80 degrees
- Supports Multicopter Configurations: MR25, MR25P
Multicopter Brushless ESC
- Input Voltage: 11.1V~14.8V(3S~4S Li-Po)
- Max Continuous Current: 15A
- Operating Temperature: -5°C~45°C(23°F~113°F)
RCM-BL1806 Brushless Motor 2300KV(RPM/V)
- Input Voltage: 3 cell
- Max Continuous Current: 10A
- Max Continuous Power: 130W
- Stator Arms: 12
- Magnet Poles: 14
- Dimesion/Weight: Φ5xΦ23x25.6mm/18.5g
5.8GHz Video Transmitter
- Operating Frequency: 5.8GHz
- Transmitting Channels: 32 CH
- Input Voltage: 7~19V DC
- Operating Current: 300mA 12V
- Antenna Interface: RP SMA
- Transmitting Power: 350mW
- Dimesion: 31x23x11mm
- Weight: 14g(Exclude Antenna)/21.48g(Include Antenna)
Video Camera
- Recording: 1080P 30FPS/720P 60FPS
- Encoding Format: Av1
- Photo Resolution: 5M/3M pixels
- Shutter speed: 2~1/8000sec
- Input Voltage: 5V
- Perspective: 90°
- Memory Cards: Micro SD(Maximum Supported 32GB)
- Interface: Mini USB、AV OUT/DV IN、MRS Controller
- Video Output Format: PAL、NTSC
Specification
- AirFrame Diameter: 250mm
- AirFrame Height(Excluding Antenna): 78mm
- Propeller Diameter: 5 inches(127mm)
- AUW(Excludes Battery): Approx.410g
